Optional Lab 11: Quality-gated publication and a reconciled KPI

Completion: Passing automated checks, where present, confirms technical behavior. Complete the independent task, explanation and evidence specified on this page.

Author: Isaac K. Nti. Outcomes: SLOs 2, 4; supports advanced governance. Time: 60–90 minutes. Optional enrichment.

Why this lab matters

A failed batch must not replace a trustworthy report. You will observe rejection, preservation and retry, then specify a second reporting measure.

Learning objectives

These instructor-developed objectives support the outcomes above. You will:

• Verify a rejected batch preserves the last valid publication.
• Reconcile daily values and explain an idempotent retry.
• Describe keys, grain and a second KPI contract.

Skills you will practice

Inspect transaction evidence, read a local report, draw a simple data model and justify a metric.

Purpose and prerequisites

Complete Lab 3 and optional Lab 10. Use the same Ubuntu environment and run commands from the repository root. A reporting pipeline must preserve its last good publication when a new batch fails. The experiment uses the dedicated course database and the same private configuration; no new account is needed.

Terms you need for this lab

Term	Meaning here
Staging / quality gate	A preparation area / checks required before accepting data for use.
Transaction / rollback	Operations handled as a unit / undoing uncommitted changes.
Idempotency / KPI grain	Repeating a load without duplicating its effect / what one row of the reported measure represents.

Use the glossary as needed; no separate vocabulary submission is required.

Part A: Follow publication and retry

1. Predict the two daily totals and the number of approved records from Lab 10. Predict what a duplicated identifier would do to an unguarded revenue total.
2. Run:

.venv/bin/python scripts/optional_labs.py promotion

1. The runner publishes the valid batch, attempts an intentionally duplicated batch, asserts that publication is blocked and the previous result preserved, then retries the valid batch and asserts that it has not created duplicates.
2. Expect the catalog PASS lines from Lab 10, then:

PASS: duplicate batch blocked; prior publication preserved; retry idempotent; KPI total 45.00.
Open .local/optional-kpi.html and interpret .local/promotion-evidence.json.

Read the evidence:

.venv/bin/python -m json.tool .local/promotion-evidence.json

Expect invalid_batch_blocked, previous_publication_preserved and retry_idempotent all true. In daily_sales, the positions are date, accepted record count, amount: January 10 has count 2 and January 11 count 1.

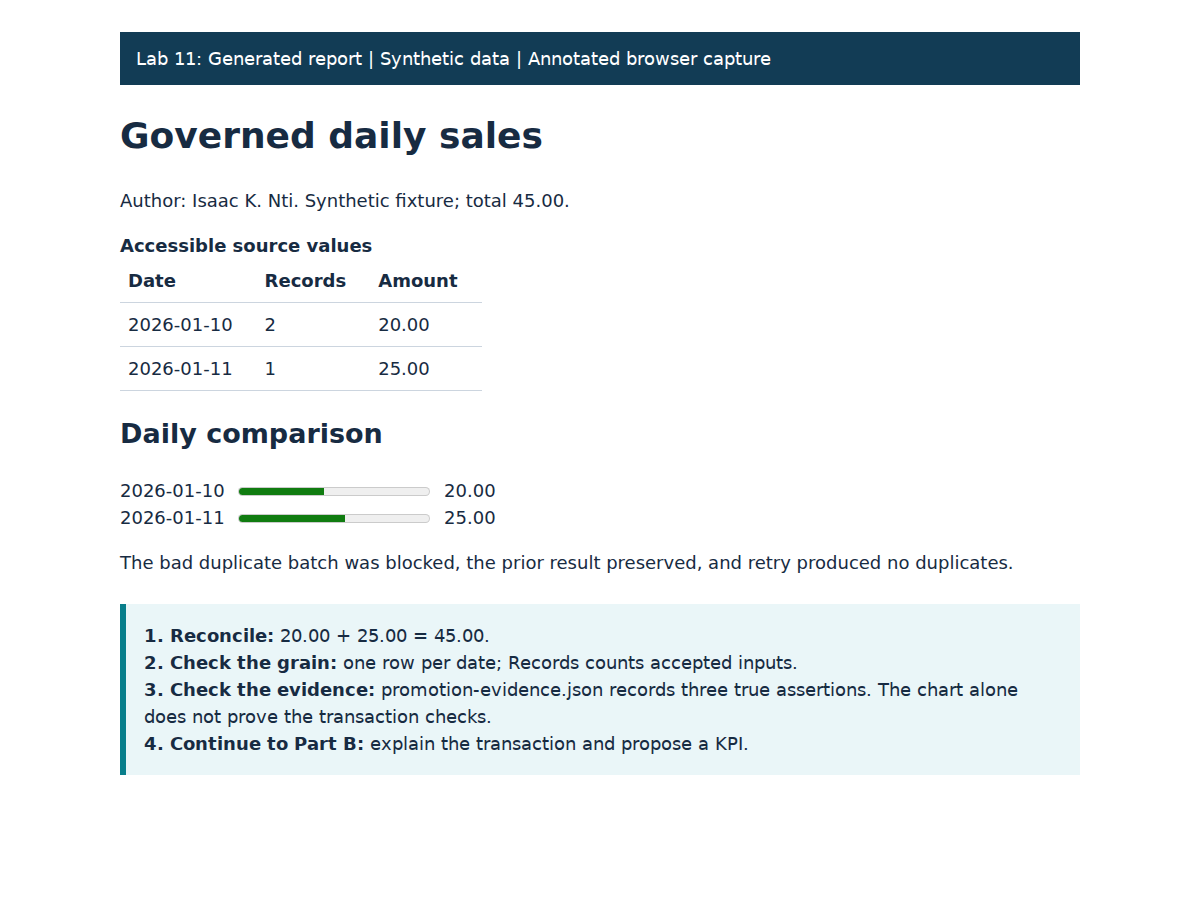

Open the repository's .local folder in your file manager, then open optional-kpi.html in a browser. In WSL, explorer.exe .local opens that folder in Windows Explorer when Windows integration is enabled. No web server is needed. If browser access is unavailable, the JSON values provide equivalent evidence. The accessible table and visual comparison must reconcile to 45.00: 20.00 on January 10 and 25.00 on January 11, 2026. 5. Repeat the command. Expect the same publication and the same negative-control result.

Part B: Explain the transaction and design a KPI

Inspect publish in scripts/optional_labs.py. Identify the transaction boundary, staging table, quality checks, publication statements and rollback path. Explain why moving deletion outside the transaction could destroy the last good result.

Draw an editable ERD (entity relationship diagram) for incoming records and the published daily summary, labeling keys and what one row represents. A two-box text diagram in your private Markdown submission is sufficient: list the incoming fields, list the daily-summary fields, and label the many-records-to-one-day relationship. A shared date does not automatically establish an enforced foreign key. No modeling application or new database table is required.

Design a second KPI and state its denominator, exclusions and reconciliation rule. Explain which additional checks would be needed for currency, late arrivals, duplicate batches with changed values and legitimate refunds.

The visual is a browser capture of the generated teaching report with an explanatory caption. The text and JSON above provide the same totals. Submit your own evidence.

Evidence and assessment

Submit an ERD source file, predicted/observed totals, the blocked-publication evidence, a short failure/recovery explanation and your proposed KPI contract. Suggested rubric: correct evidence 25%, transaction/quality reasoning 35%, model/KPI transfer 30%, limitations 10%. The report is evidence for this miniature pipeline, not automatic proof that a different capstone architecture has been implemented.

Recovery and limits

This runner replaces only <configured schema>.optional_daily_sales, a derived table reserved for this optional fixture, and its own .local reports. Do not store your independent data in that table. Core raw, dbt and governance-register data are preserved. Rerun with the original fixture after investigating an error; do not remove quality gates.

This is a synchronous local batch with PostgreSQL transaction guarantees. It does not deploy Airflow, schedule jobs, replicate data or prove regulatory compliance.
